Trommel Screen

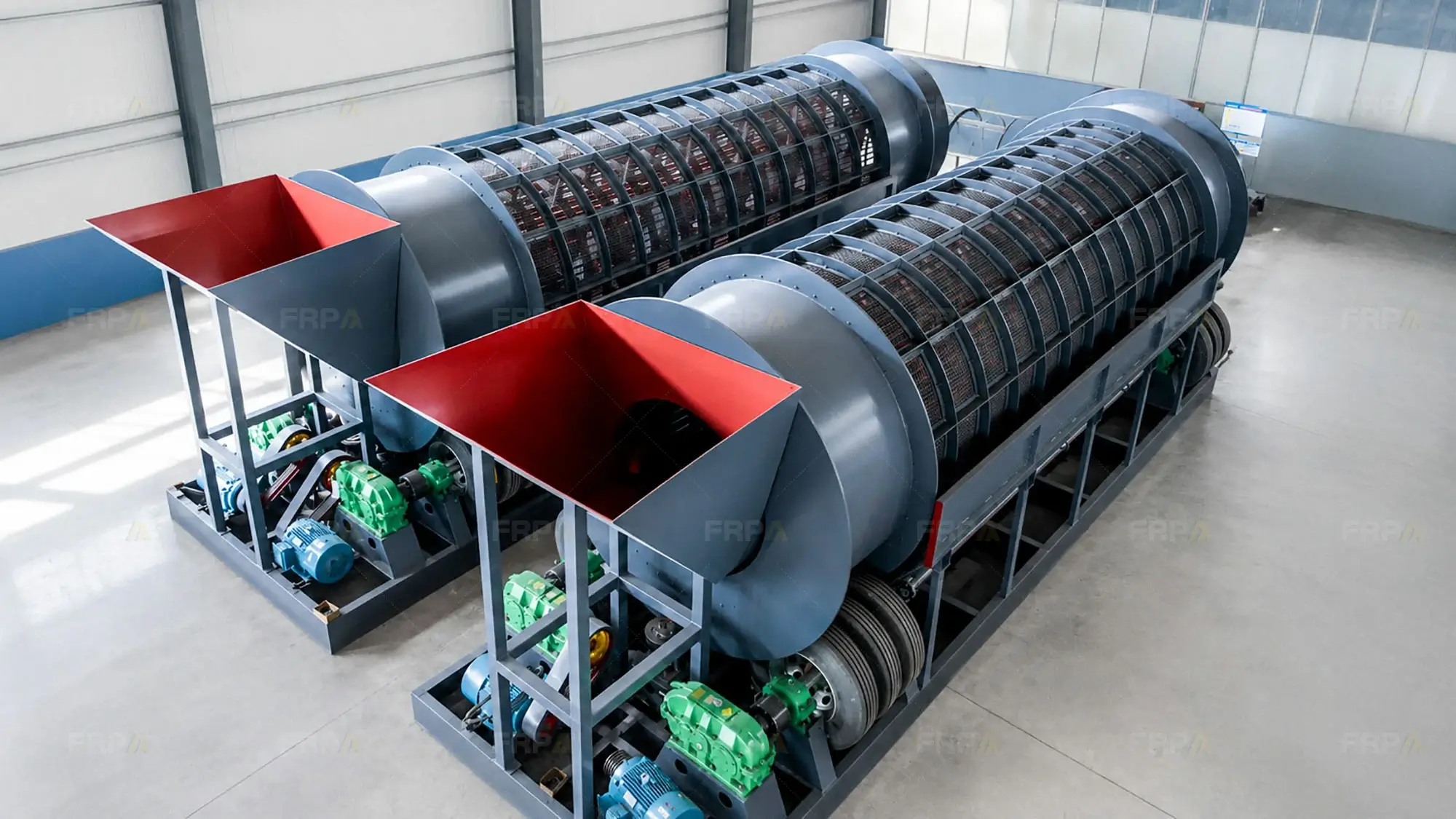

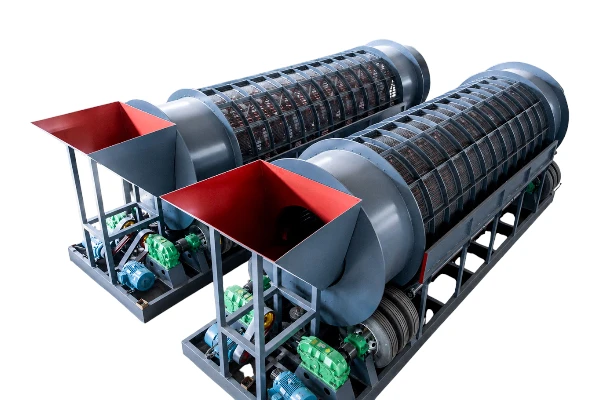

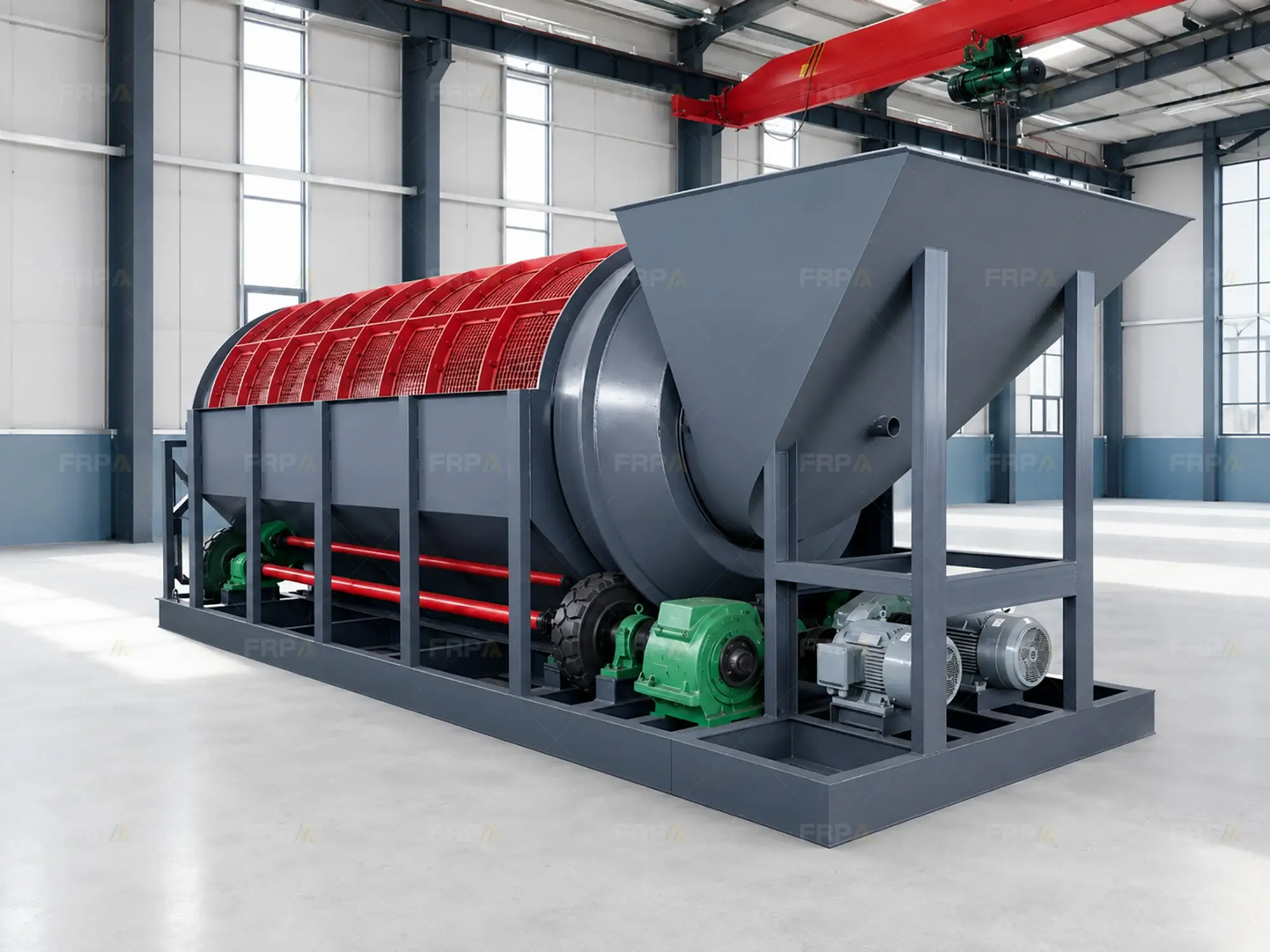

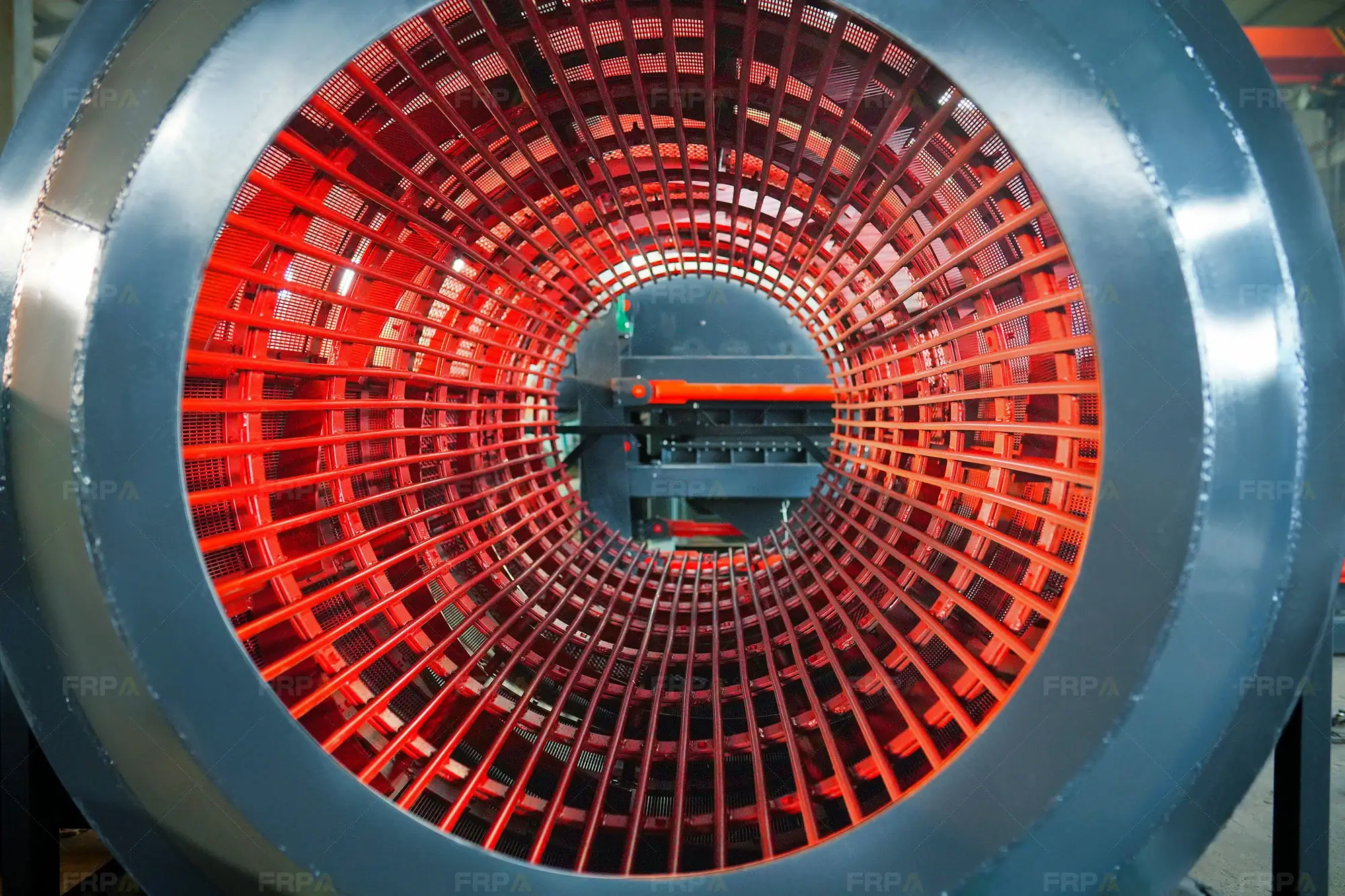

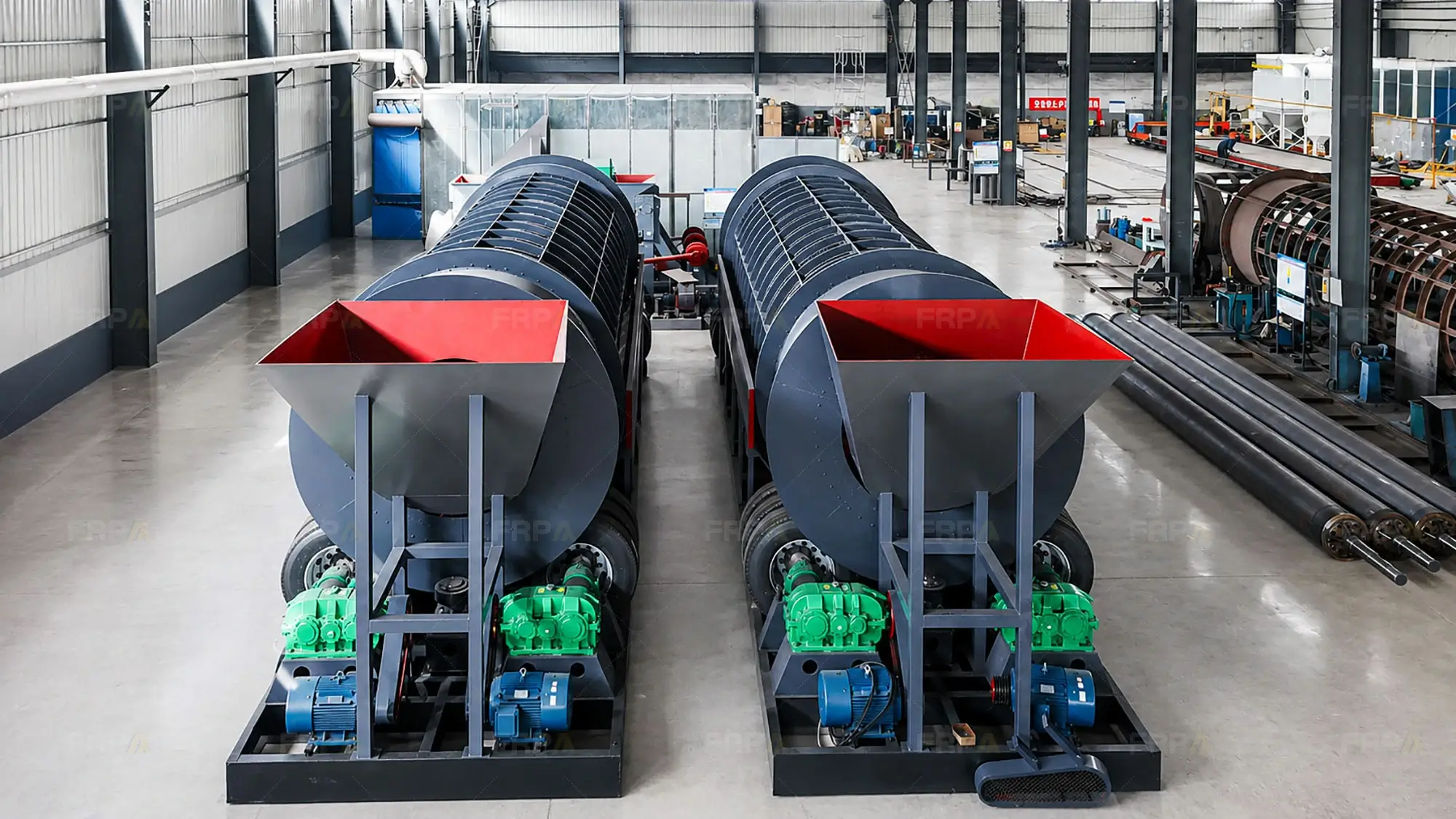

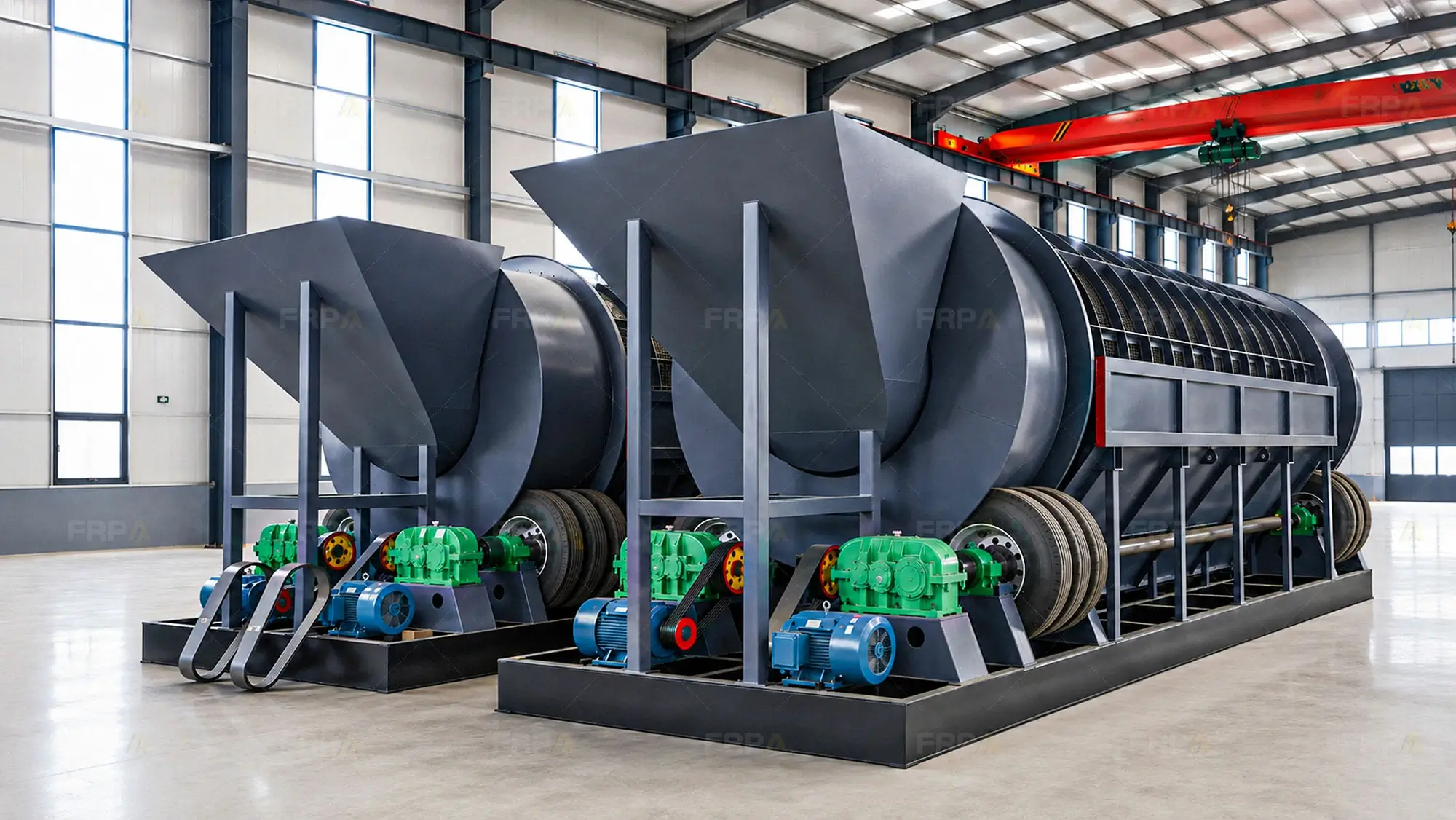

The FRP Trommel Screen (Rotary Trommel Screen) is a heavy-duty screening machine designed for continuous size classification of ore, aggregate, and selected recyclable materials in both dry and wet applications. Using a rotating drum, the machine lifts, tumbles, and redistributes material to ensure consistent contact with the screening surface, delivering stable separation and continuous throughput.

Compared with flat or vibrating screens, a trommel screen is better suited for wet, sticky, clay-rich, or difficult-to-screen materials, where reduced blinding and stable operation are required. With optional spray systems, it can also perform simultaneous screening and washing, making it an efficient front-end solution for mineral processing plants, sand applications, and aggregate production lines.

Send Email ✉ Get Inquiry

Key Benefits / Advantages

Full Wet And Dry Application Flexibility

The trommel screen can be engineered for both dry classification and wet washing applications with optional spray systems. This flexibility allows the machine to handle a wide range of material conditions, from dry feed to high-moisture, clay-rich material in mineral processing and aggregate operations.

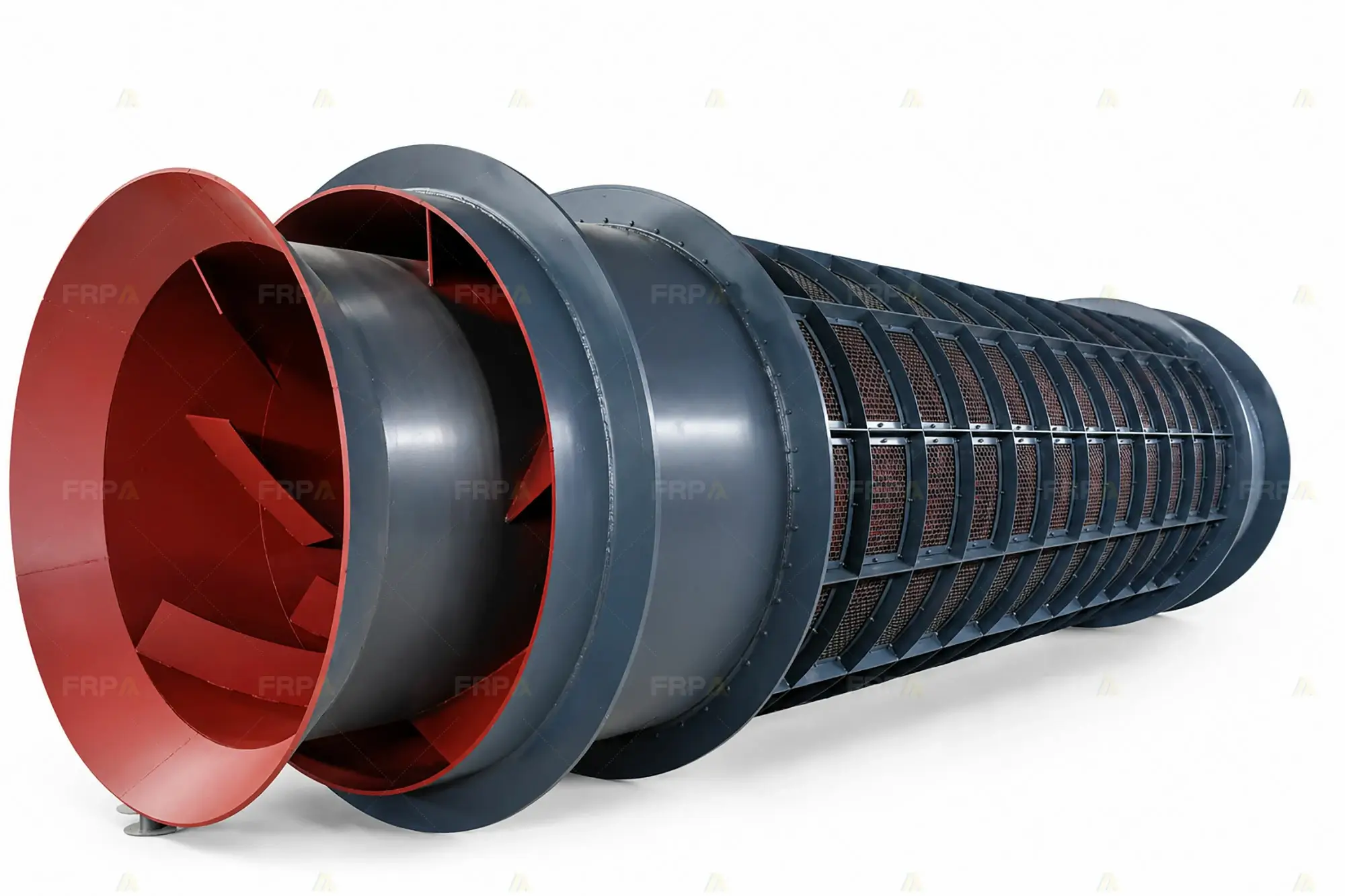

Precision-Machined Concentric Drum Structure

The drum support rings are fully machined after welding to ensure true concentricity during operation. This high level of precision minimizes eccentric movement and mechanical vibration, helping protect bearings and drive components while extending the overall service life of the rotary trommel screen.

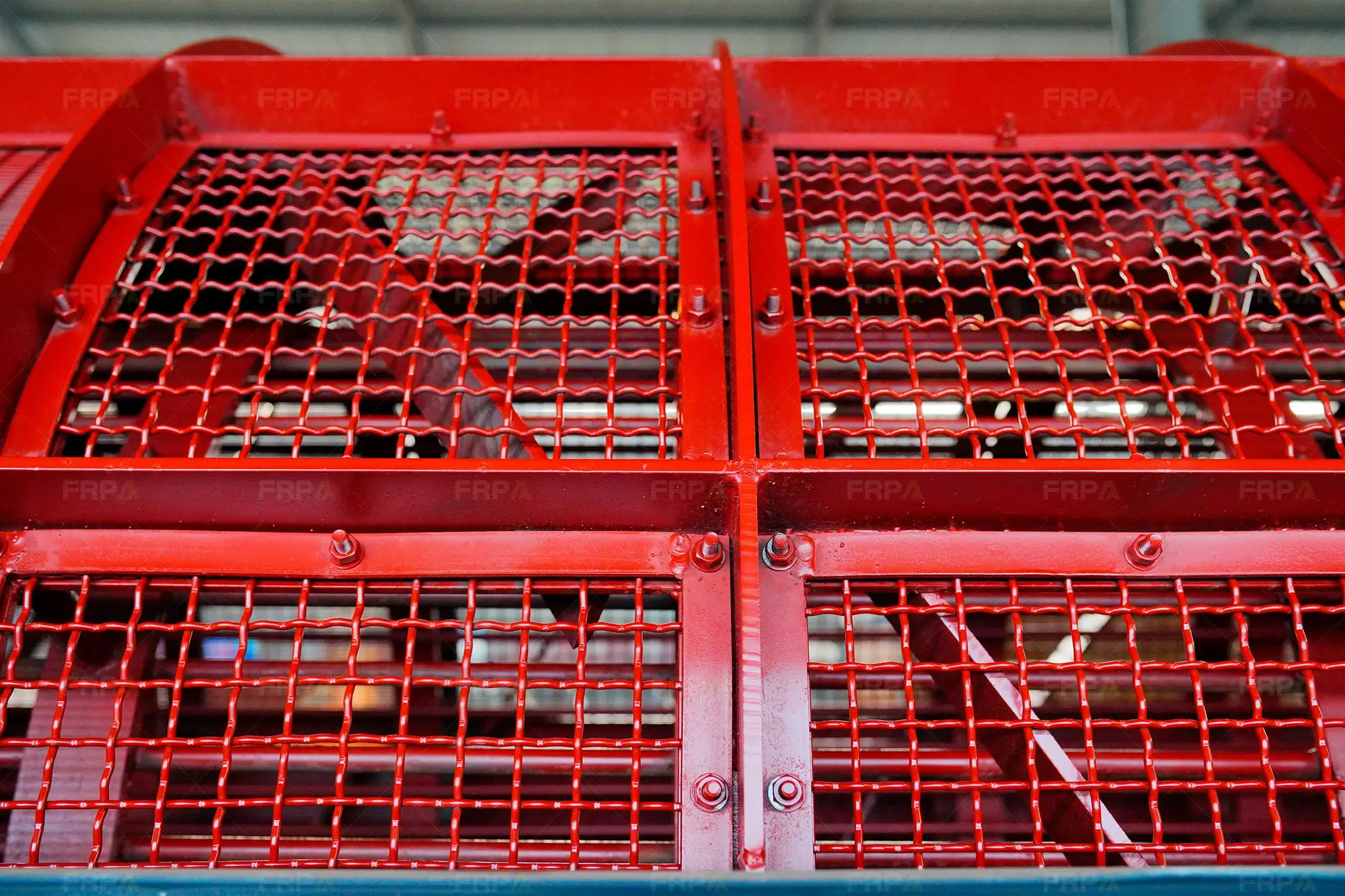

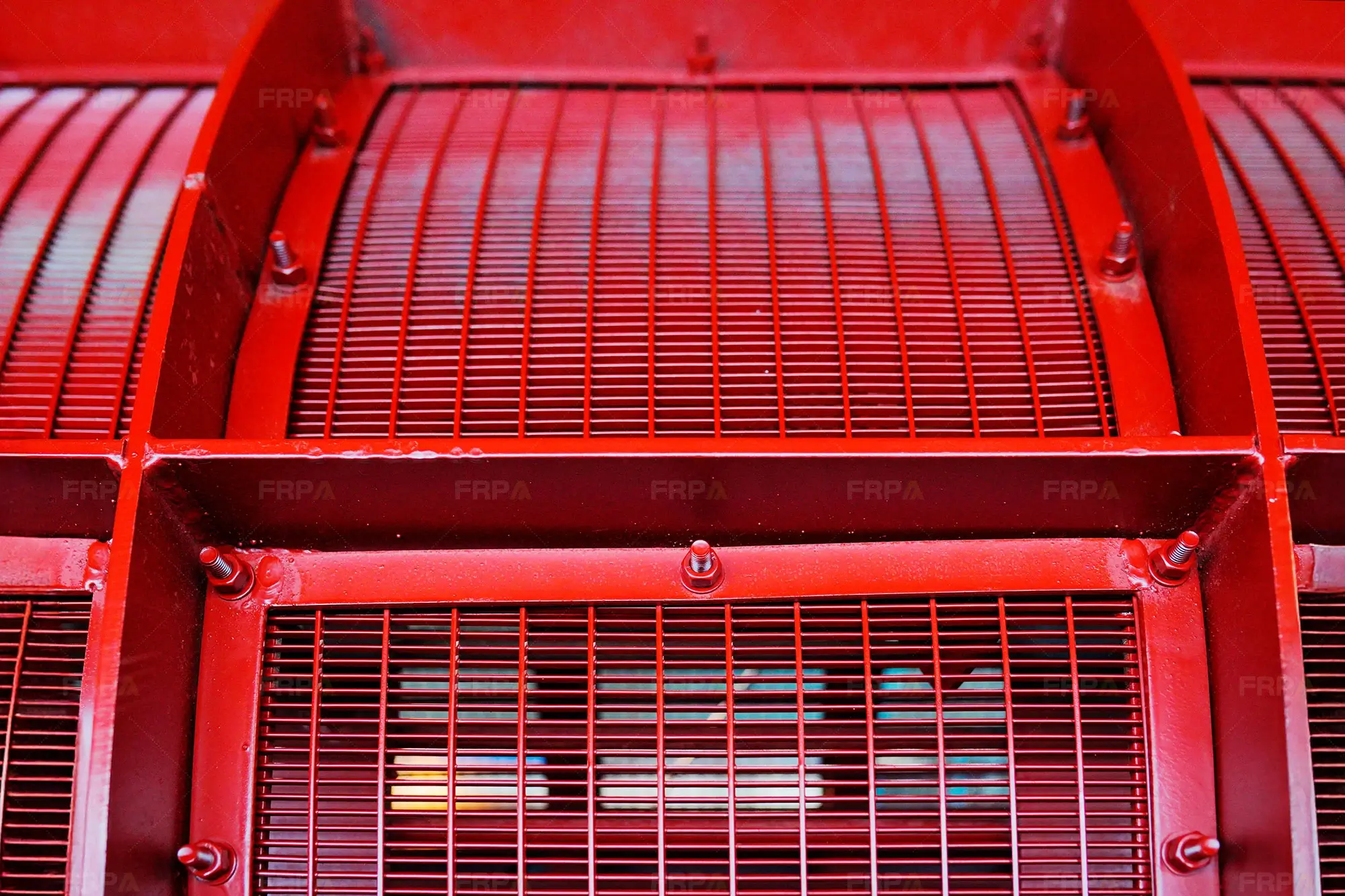

Multiple Screen Media Options

A wide range of screen media is available, including heavy-duty perforated steel plate, wear-resistant rubber, modular polyurethane panels, and woven wire mesh. These options allow the trommel screen to be configured for the optimal balance between capacity, screening efficiency, and wear life.

Flexible Drive System Configuration

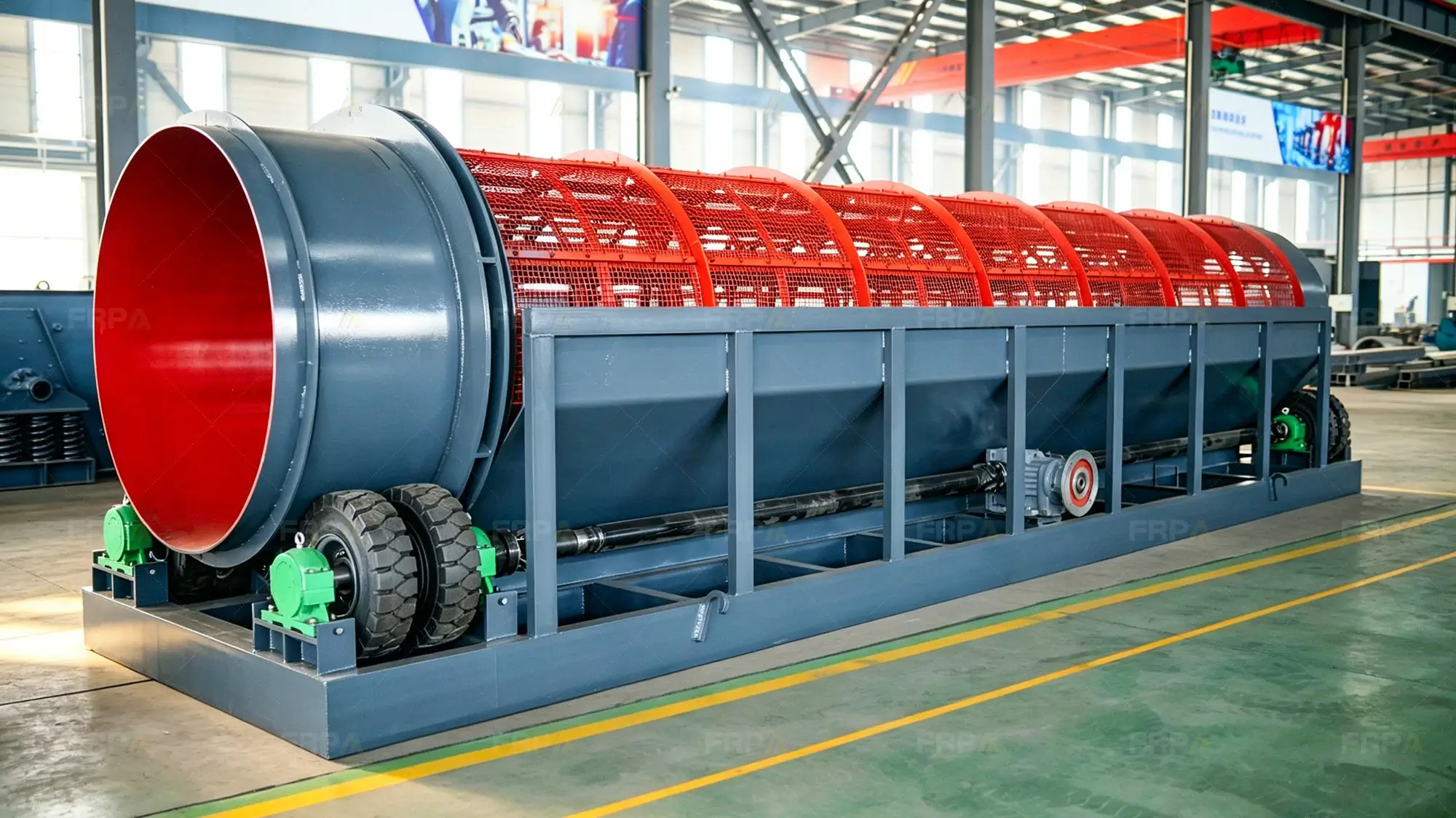

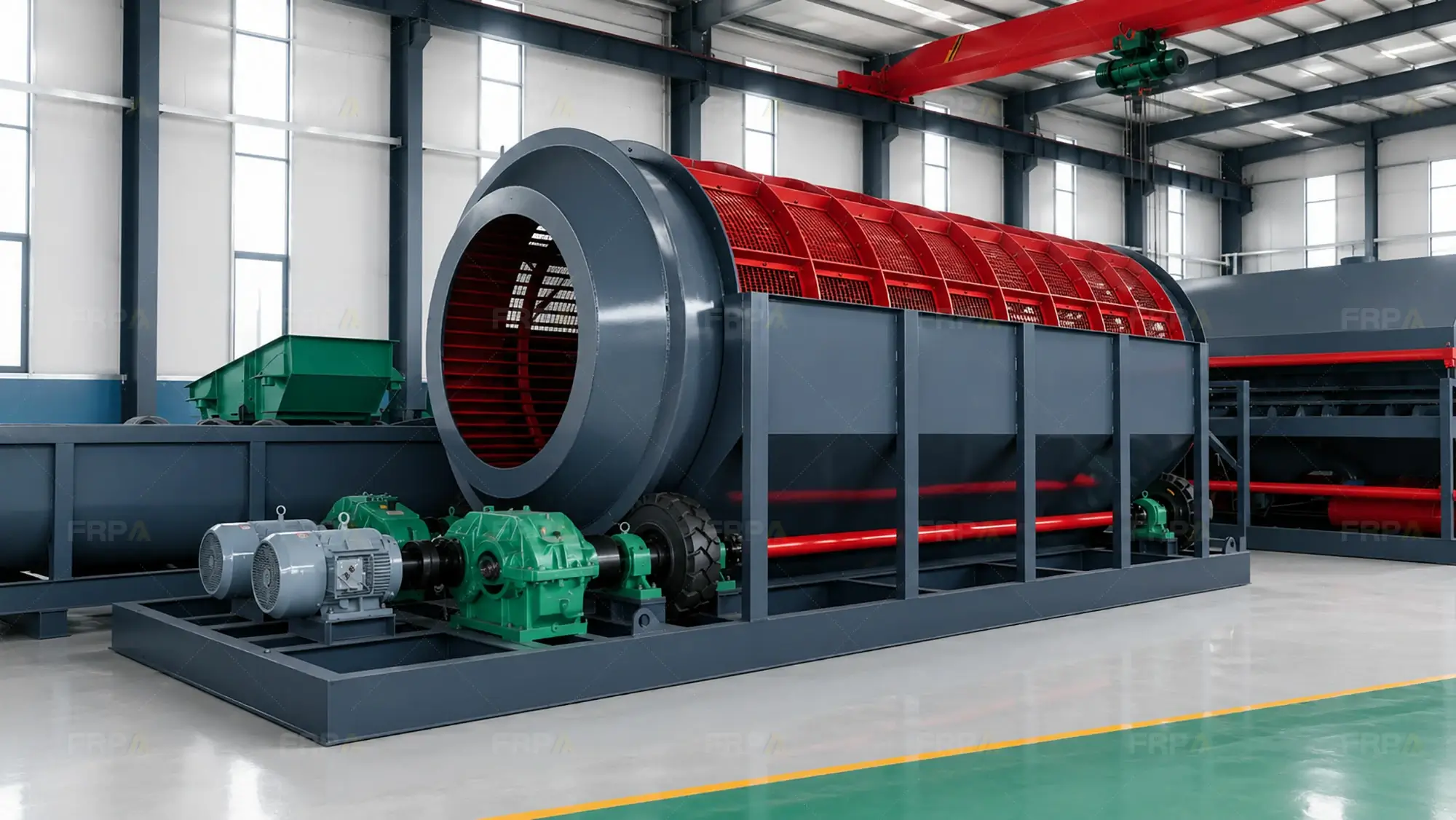

The trommel screen can be equipped with different drive systems, including chain drive, gear drive, or friction drive, depending on load conditions and application requirements. This flexibility ensures reliable torque transmission for both heavy-duty start-up and continuous industrial operation.

Trommel screen vs Vibrating Screen

Better Performance For Wet And Clay-Rich Materials

A trommel screen (rotary trommel screen) is more suitable for wet, sticky, and clay-rich materials because the rotating drum continuously lifts, tumbles, and redistributes the material. This motion reduces the risk of screen blinding and material build-up, which are common issues in flat or vibrating screens when handling high-moisture or cohesive feed.

More Effective Fine Material Separation

The tumbling action inside a trommel screen allows fine particles to repeatedly contact the screen surface, improving the chance of passing through the openings. In many applications, this results in more consistent fine material recovery compared to vibrating or flat screening systems.

Lower Impact On Screen Media And Reduced Maintenance

Unlike vibrating screens that rely on high-frequency vibration, a rotary trommel screen uses rotation and gravity to achieve separation. This results in lower impact forces on the screen media, helping reduce wear, extend service life, and lower overall maintenance requirements.

Longer Material Retention Time For Improved Separation

A trommel screen provides a longer material retention time inside the drum, allowing particles to undergo repeated lifting and cascading. This extended residence time improves separation efficiency, especially for difficult-to-screen materials or mixed feed conditions.

Frequently Asked Questions

FAQ for Trommel Screen

Why Is A Trommel Screen Less Likely To Blind?

A trommel screen is less likely to blind because material inside the rotating drum is continuously lifted, dropped, and redistributed, which helps prevent wet or sticky material from remaining on the screen surface for too long. This tumbling action keeps the screen openings clearer and makes a rotary trommel screen especially suitable for high-moisture, high-clay, and difficult-to-screen materials.

Can A Trommel Screen Be Used For Washing Applications?

Yes, a trommel screen can be used for washing applications when equipped with spray bars or a washing system. In these configurations, the machine can screen and wash material at the same time, helping remove clay, break down agglomerates, improve fine material recovery, and support processes such as gold washing, sand processing, and mineral preparation.

What Is The Role Of A Trommel Screen In Mineral Processing And Sand Applications?

In mineral processing plants and sand processing lines, raw material often needs to undergo size control, clay breakdown, and fine particle release before entering downstream separation or washing stages. A trommel screen (rotary trommel screen) uses continuous lifting, tumbling, and redistribution to repeatedly expose material to the screening surface, which improves screening efficiency and reduces instability caused by agglomeration and material adhesion; when equipped with a washing system, the trommel screen can perform screening and washing at the same time, providing a more integrated front-end solution for sand processing, ore pre-treatment, and aggregate washing applications, which is why it is widely used in mining, aggregate, and recycling operations where stable classification and adaptability to varying material conditions are required.

Can A Trommel Screen Handle Large Material?

A trommel screen can handle moderate lump sizes, but it is generally not intended for very large, high-impact material directly. In heavy-duty applications with oversized rock or strong impact loading, it is usually recommended to use a primary crusher or heavy-duty feeder ahead of the rotary trommel screen to protect the equipment and maintain stable screening performance.

How To Select The Right Trommel Screen?

Selecting the right trommel screen depends on the material type, maximum feed size, required capacity, moisture content, clay content, cut size, and whether wet screening or washing is required. To achieve the best screening efficiency and stable operation, the rotary trommel screen should always be selected according to the actual process conditions in mining, aggregate, or recycling applications.

Get The Right Trommel Screen
For Your Application

Send us your material and screening requirements, and our engineers will recommend the most suitable trommel screen solution for your process.
