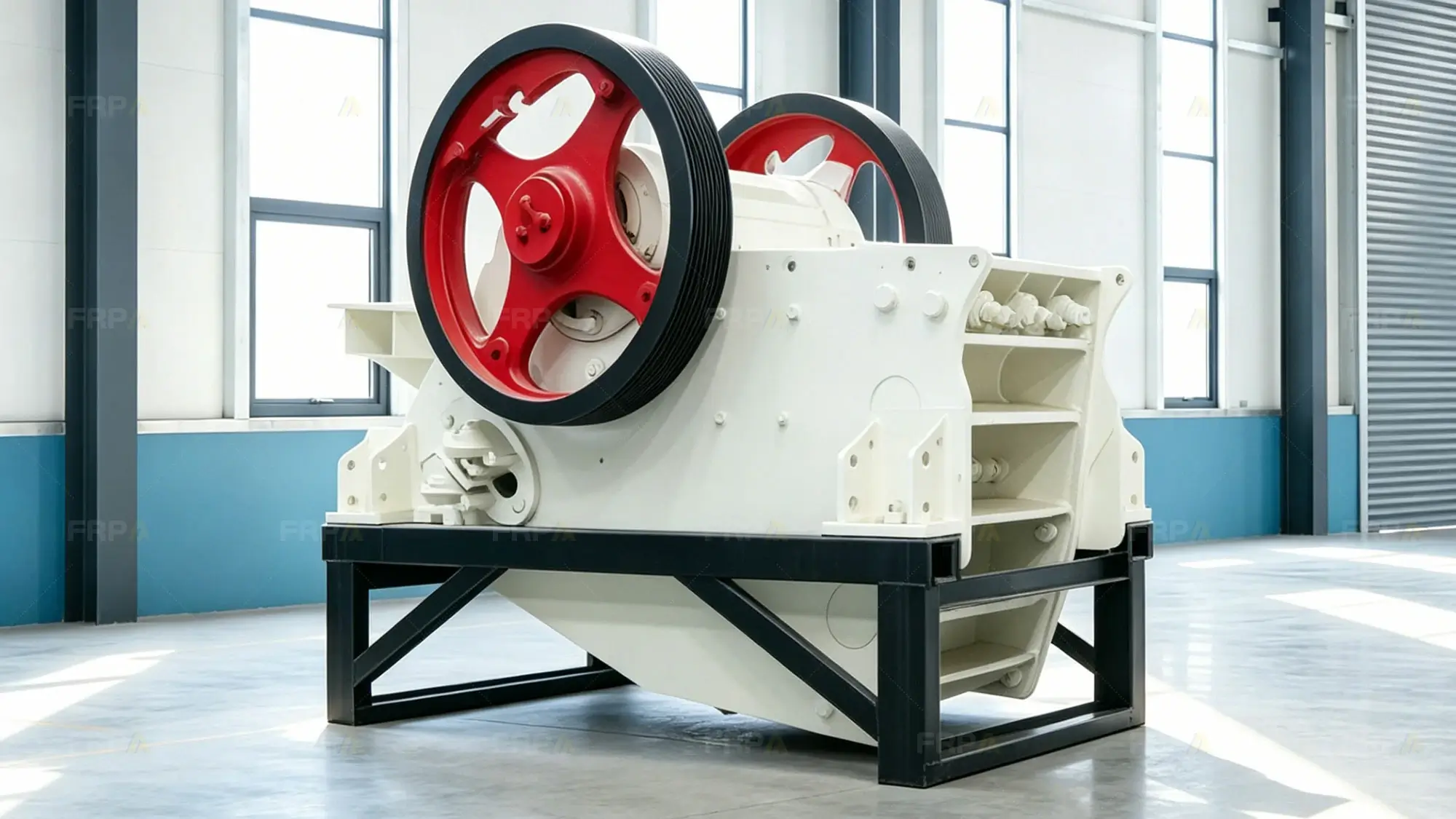

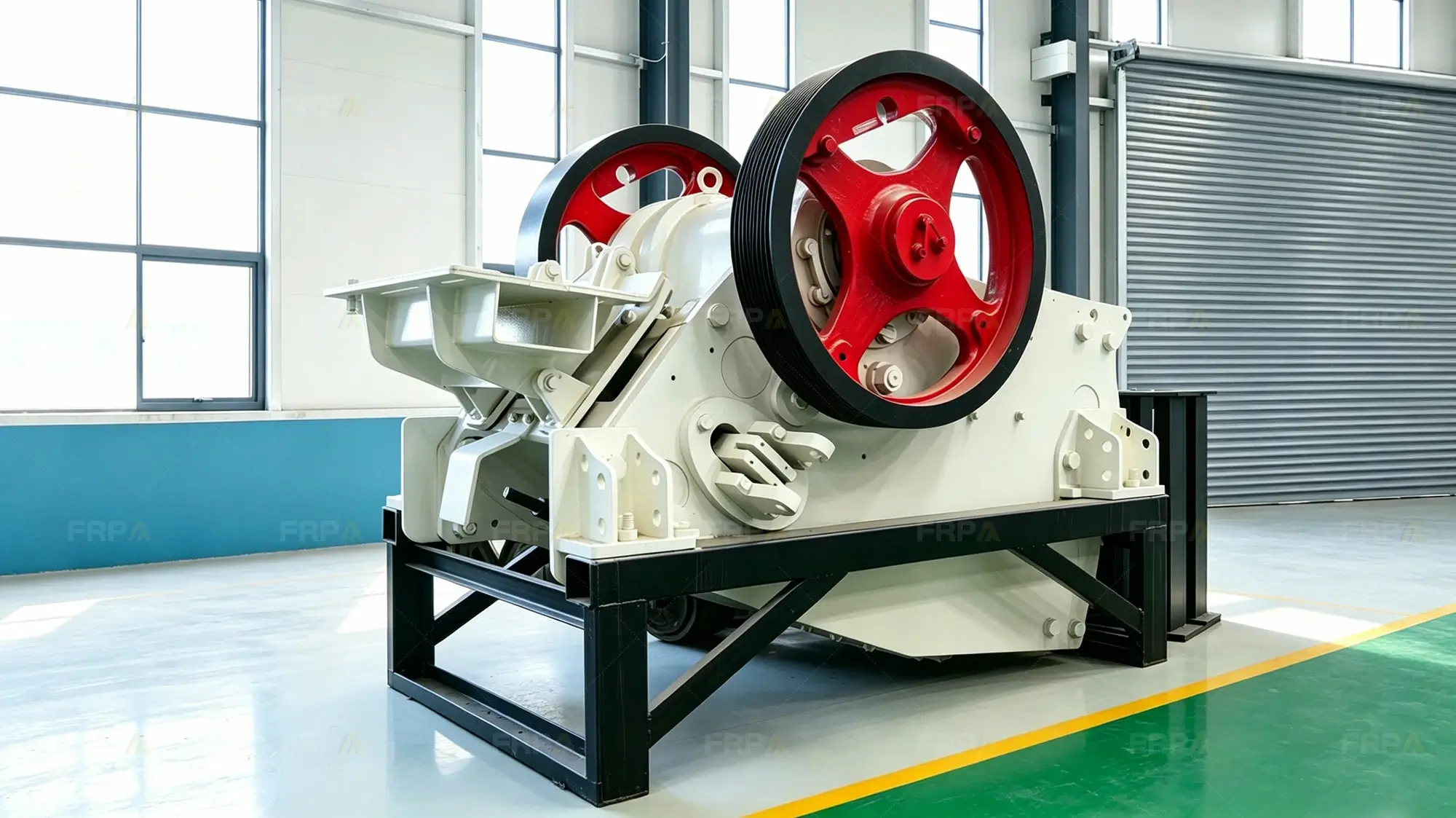

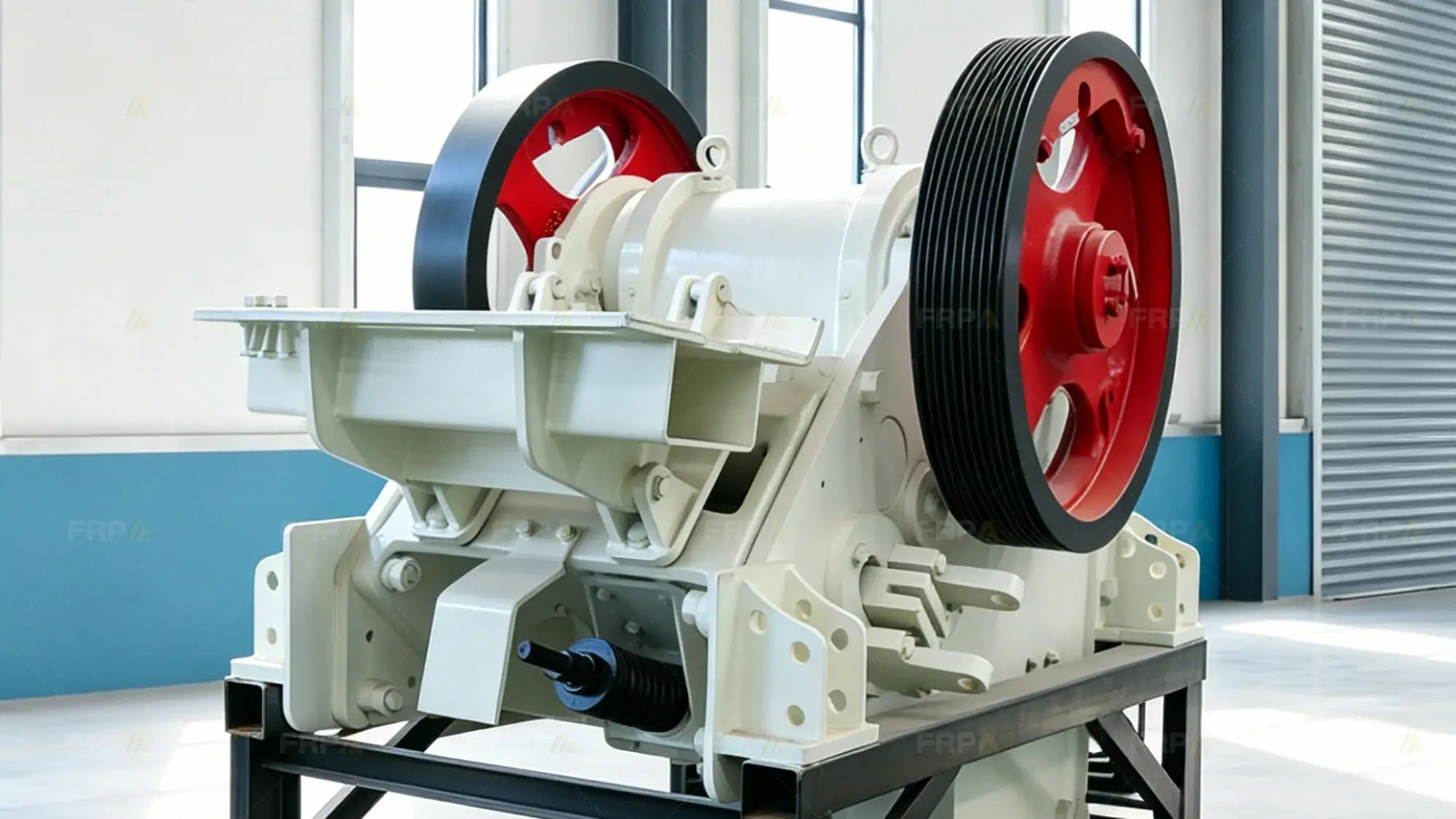

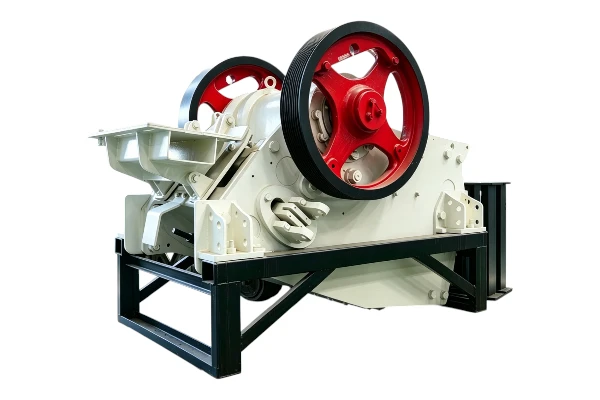

ZXC Series Jaw Crusher

The ZXC Series jaw crusher represents the next generation of primary crushing technology, integrating European engineering standards with heavy-duty structural resilience. Specifically designed for high-hardness, highly abrasive ores and rocks, the ZXC series utilizes a unique "V" shaped crushing chamber and a heavy-duty swing jaw assembly. Whether processing iron ore, gold mine ROM, or basalt and granite for high-spec aggregates, the ZXC delivers superior intake capacity and a higher reduction ratio than traditional models.

Send Email ✉ Get Inquiry

Key Benefits / Advantages

Optimized Crushing Chamber Design

Compared to standard chambers, the V-profile features a larger feed opening and a deeper crushing zone. This configuration prevents material bridging and significantly increases volumetric throughput.

Integrated Hydraulic Wedge Adjustment

Replace cumbersome manual shim adjustments with an automated hydraulic wedge system. This allows for precise Closed Side Setting (CSS) changes in minutes, drastically reducing maintenance downtime and increasing operational safety.

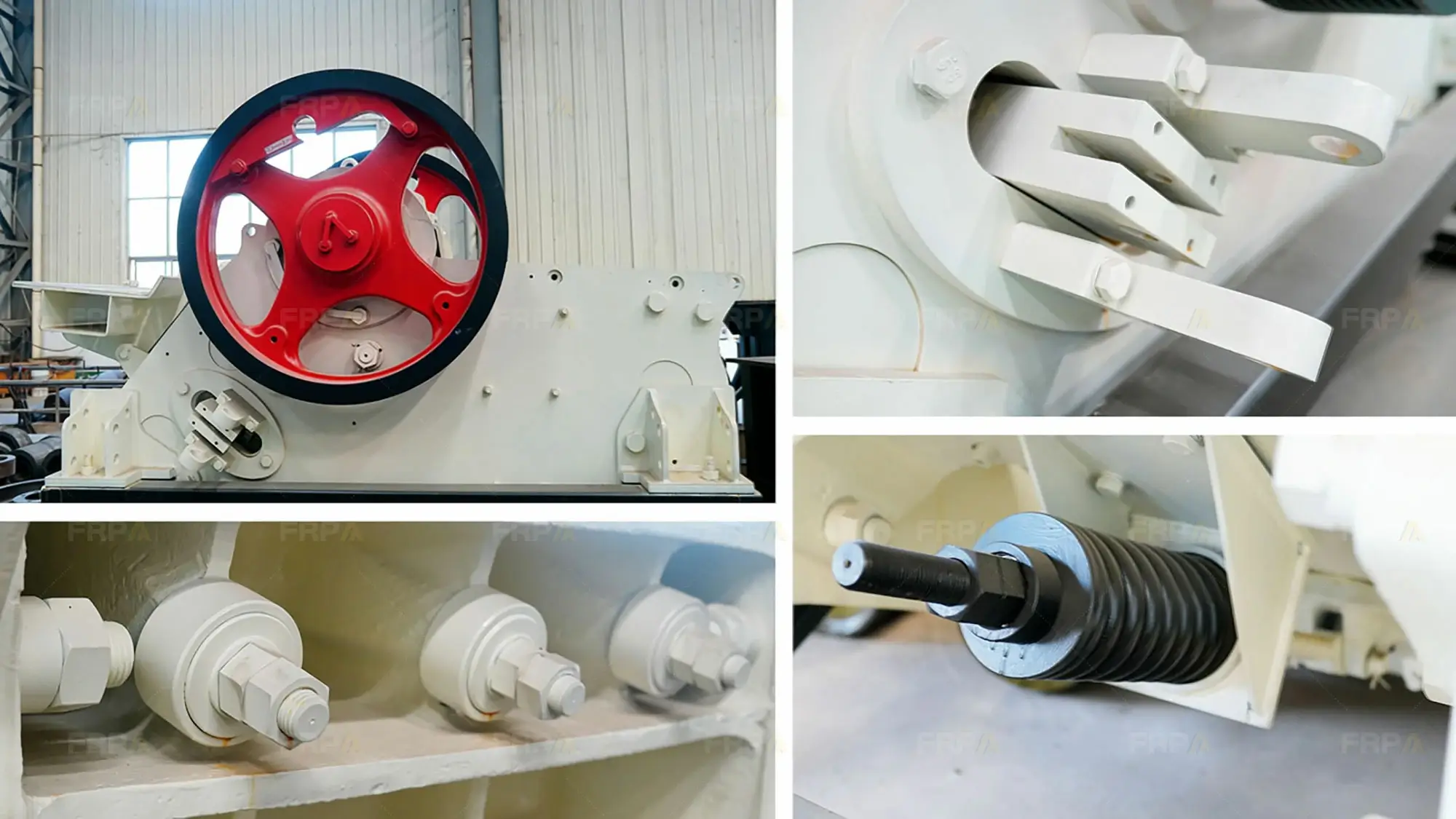

Heavy-Duty Movable Jaw Assembly

Constructed with high-quality cast steel and oversized eccentric shafts, the assembly is optimized via Finite Element Analysis (FEA) to ensure exceptional fatigue life under extreme impact loads.

One-Piece Cast Steel Bearing Housing

The integral housing ensures a perfect fit with the frame, eliminating radial load misalignment common in split-type housings. This extends the lifespan of the heavy-duty bearings by over 30%.

Extreme Throughput Performance

With single-unit capacities reaching up to 1500 t/h, the ZXC series is the definitive choice for large-scale mining and high-output quarrying operations.

Engineered for Demanding Feed and Abrasive Hard Rock Conditions

The ZXC Series excels in the harshest environments where traditional crushers fail. In processing materials with compressive strengths exceeding 300MPa, equipment often faces the risk of frame cracking or bearing overheating. The ZXC series mitigates these risks through a heavy-duty side plate design and high-performance shock absorption mounts that dissipate high-frequency impact energy. When paired with our specialized tooth-profile liners, the unit not only increases crushing force but also ensures uniform material distribution, resulting in superior product cubicity and lower energy consumption per ton.

Frequently Asked Questions

FAQ for ZXC Series Jaw Crusher

What Is the Advantage of the ZXC jaw crusher？

The V-profile increases the effective contact area between the material and the jaw plates, directing the crushing force more efficiently. This allows the unit to swallow larger feed sizes and increases throughput by reducing material "bounce" in the chamber.

How Does the Hydraulic Wedge Adjustment System Improve Operational Safety?

Traditional manual shim adjustment requires personnel to work behind the crusher in a high-risk zone. Our hydraulic wedge system enables adjustment from a safe distance or via remote control, ensuring precision without compromising technician safety.

Is the ZXC Series Suitable for Secondary Crushing Applications?

While primarily a primary crusher, its stability makes it excellent for high-load secondary circuits involving extremely hard rock. For finer output requirements, we recommend following the ZXC with a high-performance Cone Crusher.

What Are the Maintenance Requirements for the Heavy-Duty Bearings?

The ZXC features a centralized lubrication manifold. Due to the integral bearing housing and oversized roller bearings, maintenance is simplified to regular grease checks. The robust design typically extends the service interval by 30% compared to standard jaw crushers.

Optimize Your Primary Crushing Line Today

Ready to maximize your plant’s uptime?

Contact the FRP engineering team for a customized ZXC Jaw Crusher technical proposal.

Contact Today

Technical Data of ZXC Series Jaw Crusher

Model	Feed Opening Width (mm)	Feed Opening Depth (mm)	Power (kW)	Eccentric Shaft Speed (rpm)	Weight (kg)
ZXC80	800	510	75	350	8060
ZXC96	930	580	90	330	11353
ZXC106	1060	700	110	280	18700
ZXC116	1150	800	132	260	19390
ZXC110	1100	850	160	230	26150
ZXC120	1200	870	160	230	28160
ZXC125	1250	950	160	220	39239
ZXC140	1400	1070	200	220	47120
ZXC145	1400	1100	200	220	57723
ZXC150	1500	1200	250	220	74000
ZXC160	1600	1200	250	220	79993
ZXC200	2000	1500	400	200	121500

Output Size (mm)	CSS (mm)	ZXC96	ZXC106	ZXC116	ZXC110	ZXC120	ZXC125	ZXC140	ZXC145	ZXC150	ZXC160	ZXC200
0-60	40	65-85
0-90	60	95-125	120-155
0-105	70	115-150	140-180	155-200	170-220	190-250	205-265
0-120	80	130-170	160-210	175-230	190-250	210-275	225-290
0-150	100	165-215	200-260	220-290	240-310	255-330	270-345	290-380
0-225	150	250-325	300-390	335-435	350-455	370-480	385-495	410-535	455-590	470-610	478-620	520-675
0-260	175	290-380	350-455	390-510	405-525	425-550	440-565	470-610	520-675	540-700	548-710	595-775

Note: Specifications are subject to change without notice due to ongoing product improvement.
